LINK CHANNELS

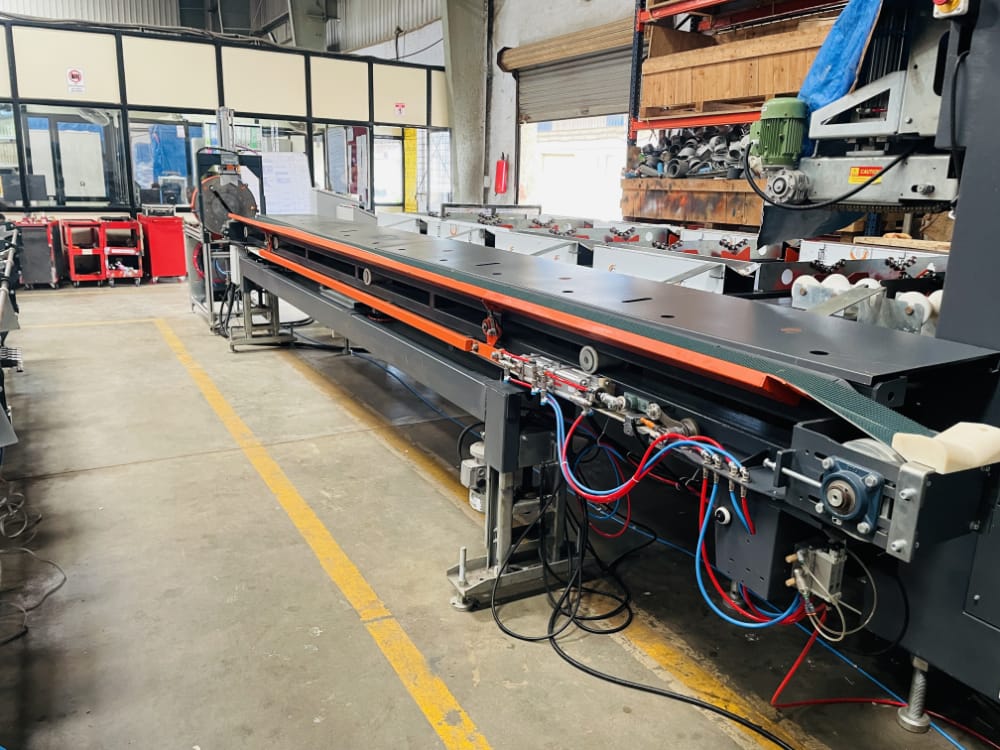

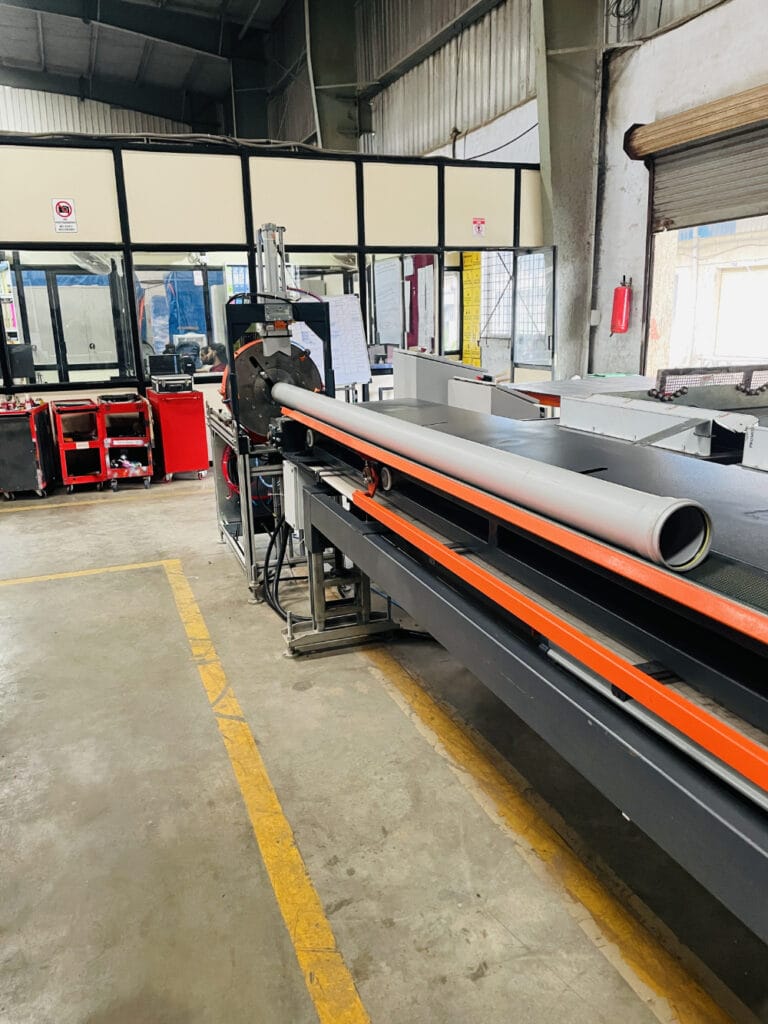

Belt channel of 3.0 m or 6.0 m length for moving pipes from O.D.32 mm to O.D.250 mm and for subsequent pipe unloading sideways on a palletizer or downstream. To be used for moving pipes towards a ringfit 160 (if installed) and for pipes unloading on a palletizer. With belt speed adjustment by means of inverter. The connection to an independent electrical system is required. Channel positioned on the side of a belling machine bench, with adjustable height and sliding on floor supports
TECHNICAL SPECIFICATIONS
| Model No. | Min. Dia. (in mm) | Max. Dia. (in mm) | Pipe Length Max. (in mm) | Installed Power (kw) (approx) | Pipes |
|---|---|---|---|---|---|
| LINK 250 - 3 METERS | 32 | 250 | 3000 | 0.74 | Agri, SWR, Corrugated |
| LINK 250 - 6 METERS | 32 | 250 | 6000 | 1.9 | Agri, SWR, Corrugated |
