RINGFIT 160

RINGFIT – RING INSERTION DEVICE

RINGFIT , our automatic ring insertion device, is the perfect solution for inserting rubber rings onto SWR sockets after they have been socketed. With a simple connection to any belling machine, RINGFIT can easily become an integral part of your pipe production line. Our cartridge holder holds up to 300 rings at a time, allowing for maximum efficiency and productivity. RINGFIT will greatly increase the speed and accuracy of your socketing operations. Plus, with its user-friendly design and reliable performance, you can trust RINGFIT to get the job done right. Choose RINGFIT for all your socketing needs.

  • Automatic Device to insert Rubber Ring on SWR Sockets Post Socketing Operations.
  • Can be attached to any Belling Machine by connecting a Link Channel.
  • Cartridge Holder to store up to 300 Rings at a time.
  • Speed: Up to 400 Pipes per Hour (Depending on Diameter)
  • User friendly and Reliable.
  • 0w6a8475
  • 0w6a8477
  • 0w6a8485
  • 0w6a8487

RINGFIT 160

TECHNICAL SPECIFICATIONS

Model No. Min. Dia.
(in mm)		 Max. Dia.
(in mm)		 Pipe Length
Min.		 Pipe Length
Max.		 Installed Power (kW)
(approx)		 Socket Types
RINGFIT 160501603 Mtrs.6 Mtrs.2SWR

OTHER PRODUCTS

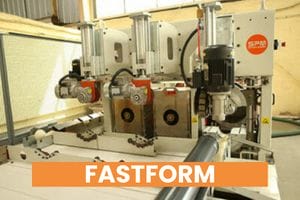

FASTFORM

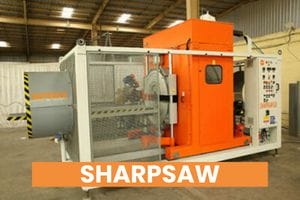

SHARPSAW

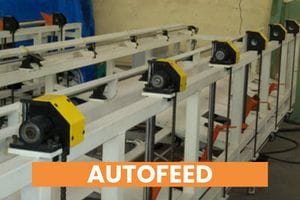

AUTOFEED

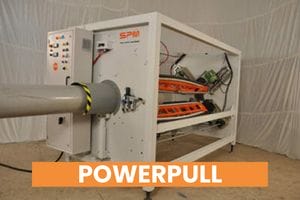

POWERPULL
