Downstream Machines for Corrugated Pipe Extrusion Lines
Corrugated pipe extrusion lines need downstream equipment that preserves the corrugated profile: haul-off machines with adjustable grip pressure, knife-type cutting systems, and pipe handling and collection equipment.
Corrugated pipes are widely used across India for drainage, sewerage, cable protection and agricultural applications. While the corrugator itself forms the pipe profile, the downstream extrusion equipment that follows is equally critical for delivering finished, market-ready corrugated pipes.
SICA India manufactures the downstream machines that complete a corrugated pipe extrusion line — haul-off machines, cutting systems, and pipe handling equipment — in Mumbai, through SICA Plastic Machinery Pvt. Ltd., a joint venture between SICA S.p.A. of Italy and Satellite Plastic Industries.
What Corrugated Pipe Demands from Downstream Equipment
Corrugated pipe is not a harder version of plain pipe — it is a different mechanical problem for every station after the corrugator. The profile that gives the pipe its ring stiffness is also the thing every downstream machine can destroy.
- Discontinuous gripping surface — a haul-off grips a plain pipe along its full contact length. On corrugated pipe it contacts only the crests, so grip pressure has to be enough to pull without being enough to flatten the corrugation.
- Hollow, compressible section — a double-wall pipe has an air gap between the inner and outer wall. Excess clamping force collapses it, and the damage is often invisible until a ring stiffness test fails.
- Cutting into a void — a saw blade entering a corrugation crest passes through the outer wall, an air gap, then the inner wall. Disc cutting here produces chips that fall inside the bore and can crush the crest at the point of entry.
- Irregular outer surface for handling — collection and conveying equipment designed for smooth pipe does not locate corrugated pipe reliably.
Every equipment choice below follows from these four constraints.
SICA India Equipment for Corrugated Pipe Lines
Haul-Off Machine (POWERPULL)
The POWERPULL haul off machine provides controlled pulling of corrugated pipes from the corrugator. Adjustable grip pressure allows the corrugated profile to be maintained without deformation during pulling.
- Adjustable grip pressure — set high enough for traction on the crests, low enough to avoid deforming the profile.
- Independently driven caterpillars with vector motor and encoder — constant pulling power with precise, repeatable speed control.
- Pivoted upper caterpillars with anti-squash control — the specific feature that protects a hollow corrugated section.
- Natural rubber pads on non-marking chain conveyors — grip without marking the crests.
- Motorized caterpillar positioning — tracks adjust to pipe outer diameter between runs.
- Track configurations — 2, 3, 4 and 6 caterpillar units cover pipe up to 630 mm outer diameter.
Why pull speed matters at all is covered in our guide to how the caterpillar pull controls pipe quality.
Cutting Machine (SHARPSAW )
The SHARPSAW cutting machine delivers clean, precise cuts on corrugated pipes. Knife (K) cutting tools deliver burr-free cuts without crushing or deforming the corrugations.
Optional synchronisation — adjusts carriage speed as extrusion speed varies, keeping cut length accurate.
Planetary knife system — the knife orbits the pipe and severs it without removing material, so no chips or swarf enter the bore.
Why knife rather than disc — disc cutting generates chips that lodge inside the corrugation voids, where extraction cannot reach them.
Hydraulically driven cutting arm — cuts through thick-walled pipe effortlessly.
Dynamically balanced cutting rotor — accurate cuts with no rough edges at high line speed.
Socketing & Belling (FASTFORM)
For corrugated pipes requiring socket ends, the FASTFORM belling machine creates accurate solvent cement, SWR, or elastomeric sockets. The FASTFORM series handles the unique requirements of corrugated pipe socketing with precision.

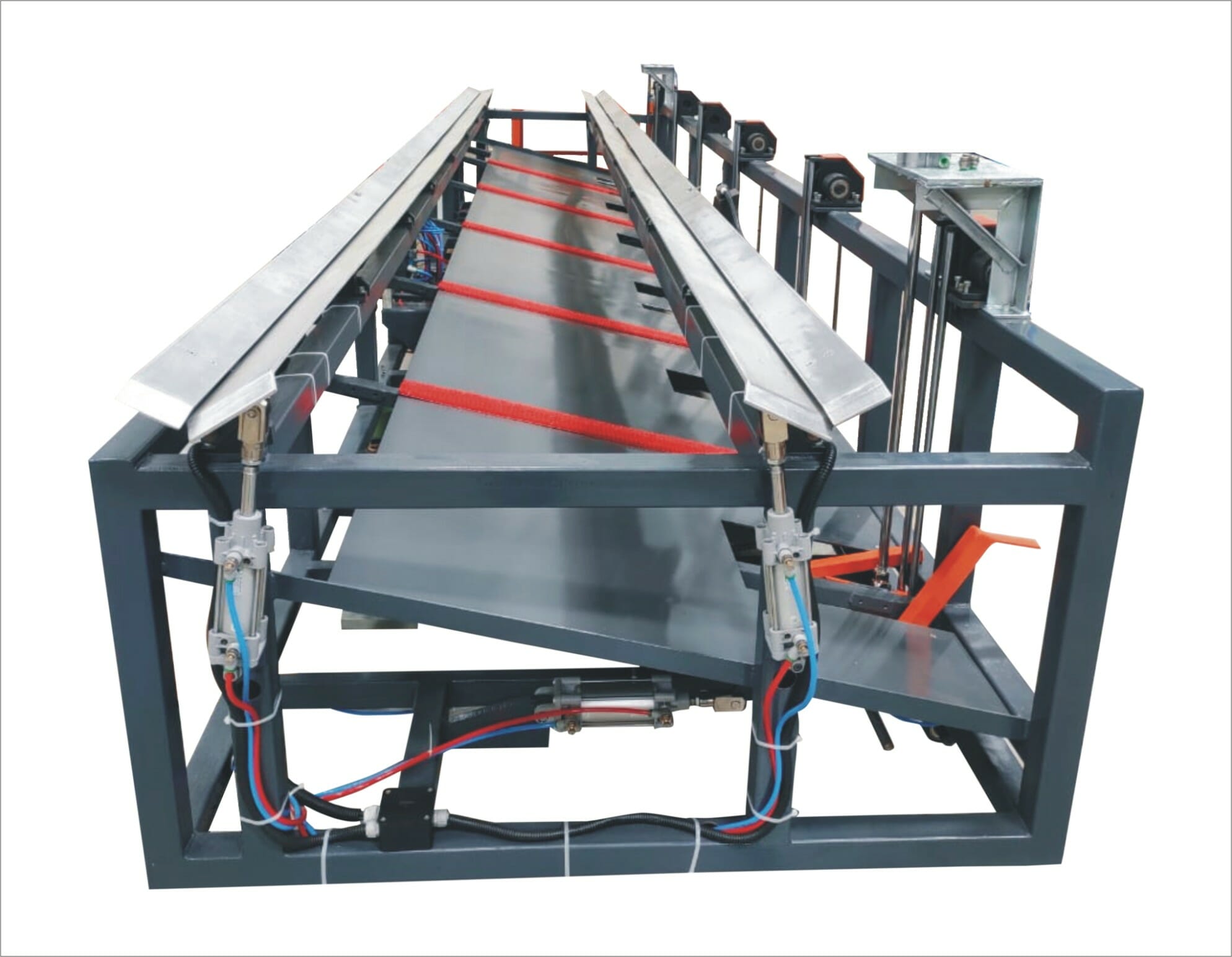

Pipe Handling & Collection (AUTOFEED)
The AUTOFEED collection table and Link Channels manage the movement and collection of corrugated pipes after cutting, feeding them onward to downstream stations or to palletizing.
- AUTOFEED collection table — collects pipes from dual extrusion lines and releases them one at a time to the next station.
- Link Channels — belt conveyors of 3.0 m or 6.0 m length moving pipes from OD 32 mm to OD 250 mm, with belt speed adjustable by inverter.
- Side unloading — channels position alongside the line for subsequent unloading onto a palletizer or downstream equipment.
- Adjustable height — channels slide on floor supports and adjust to match line height.
For the full onward sequence, see pipe palletizing and handling equipment.
Single-Wall and Double-Wall Corrugated Pipe
Both profiles run on the same downstream stations, but the constraints tighten as wall construction gets more complex:
- Single-wall corrugated pipe — used mainly for cable protection and flexible ducting. Lighter and more compressible, so grip pressure is the primary variable to control.
- Double-wall corrugated (DWC) pipe — a corrugated outer wall bonded to a smooth inner wall, used for underground drainage and sewerage. The hollow section between walls is what delivers ring stiffness, and it is also what collapses under excess clamping force.
- Common requirement — for both, knife cutting is preferred over disc cutting, and anti-squash haul-off control is not optional.
Corrugated Pipe Applications in India
Corrugated pipes are essential infrastructure components across multiple sectors in India:
- Underground drainage and sewerage — double-wall corrugated HDPE and PP pipes are the preferred choice for underground drainage systems due to their high ring stiffness, chemical resistance and long service life.
- Cable protection — single-wall and double-wall corrugated pipes protect electrical and telecommunications cables in underground ducting systems.
- Agricultural drainage — perforated corrugated pipes are used in agricultural land drainage to manage water tables and prevent waterlogging.
- Stormwater management — large-diameter corrugated pipes form the backbone of stormwater management infrastructure in urban and rural areas.
Why SICA India for Corrugated Pipe Downstream Equipment
SICA India is a manufacturer of downstream plastic pipe extrusion equipment based in Mumbai. The company operates as SICA Plastic Machinery Pvt. Ltd., a joint venture combining SICA S.p.A. of Italy — specialists in downstream machinery and service for the plastic pipe extrusion industry since 1962 — with Satellite Plastic Industries, which has supplied and serviced European machinery in India since 1984.
- Indian-made machines — built locally for the Indian market and neighbouring markets that do not require CE certification, which removes CE-related cost from the machine.
- Local service and spares — domestic manufacture means faster response on service, maintenance and spare parts.
- Integrates with any corrugator — the downstream range is designed to work alongside any make of corrugator and extrusion line.
- Downstream specialists — SICA India works exclusively in the downstream segment rather than across the whole line.
Explore the complete product range or read more about SICA India.
Frequently Asked Questions
Does SICA India manufacture corrugators?

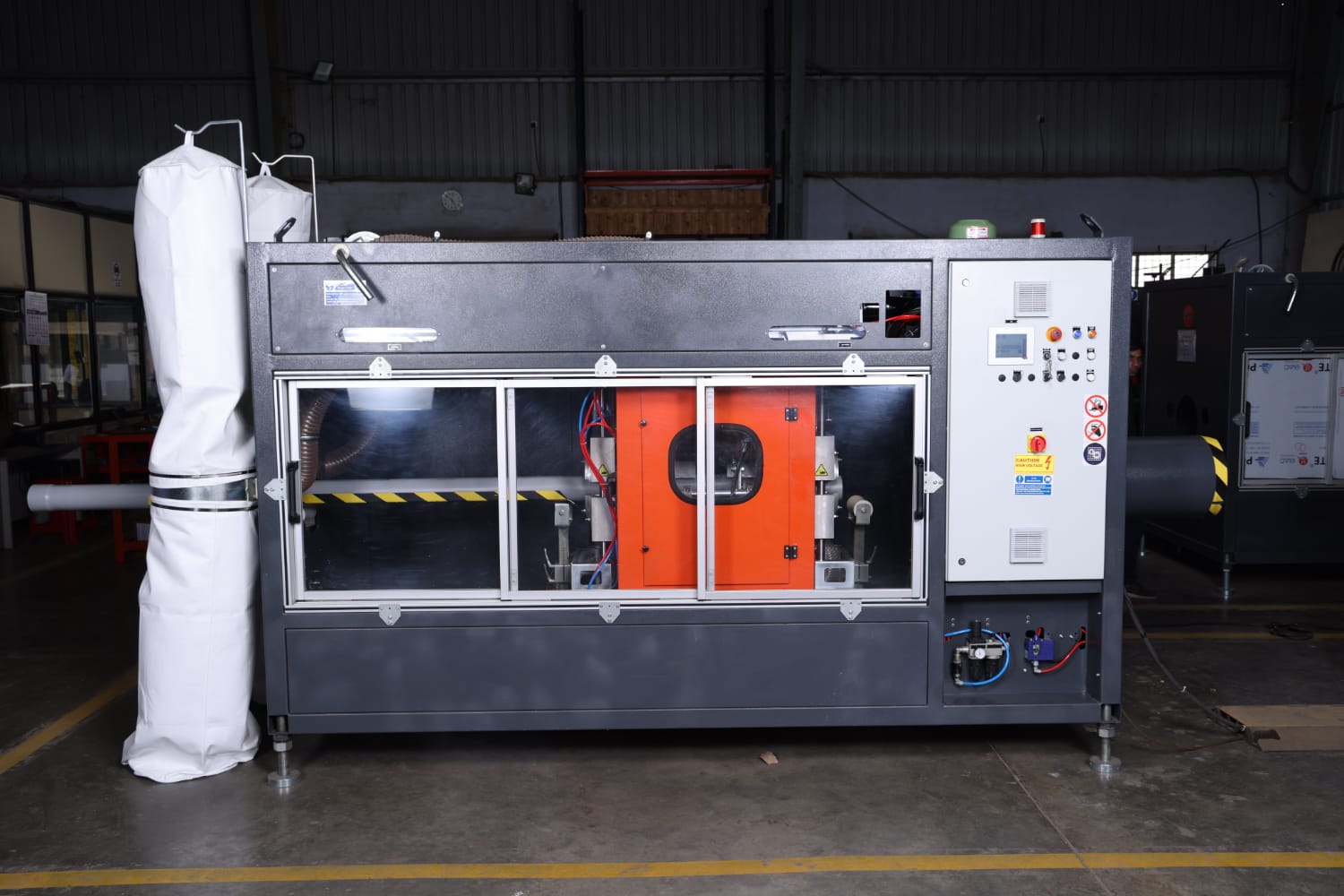

No. SICA India specializes in downstream equipment — haul-off, cutting, chamfering, socketing and pipe handling. The machines integrate with any corrugator brand.
What sizes of corrugated pipes can your machines handle?
The POWERPULL haul-off range covers pipe from 10 mm to 630 mm outer diameter across 2-, 3-, 4- and 6-caterpillar configurations, and the SHARPSAW cutting range covers pipe up to 630 mm. Link Channel pipe handling covers OD 32 mm to 250 mm, with custom solutions available above that.
Can your machines handle both single-wall and double-wall corrugated pipes?
Yes. The two features that matter for corrugated pipe apply to both profiles: adjustable grip pressure with anti-squash control on the haul-off, and knife-type cutting tools that sever the pipe without crushing the corrugations or leaving chips inside the bore.
Why is knife cutting preferred over disc cutting for corrugated pipe?
A disc removes material and generates chips, which lodge in the corrugation voids where extraction cannot clear them. A planetary knife severs the pipe without removing material, leaving the bore clean and the crest profile intact.
What is the difference between single-wall and double-wall corrugated pipe?
Single-wall corrugated pipe has one corrugated wall and is used mainly for cable protection and ducting. Double-wall corrugated pipe combines a corrugated outer wall with a smooth inner wall, delivering the higher ring stiffness required for underground drainage and sewerage.
Do corrugated pipe lines need a separate haul-off from plain pipe lines?
Not necessarily a different machine, but the settings differ. The same haul-off serves both provided it offers adjustable grip pressure and anti-squash control on the upper caterpillars.
Specifying a Corrugated Pipe Downstream Line
Whether you are running a single line or multiple high-speed corrugated pipe extrusion lines, the downstream specification follows from three variables: maximum pipe outer diameter, wall construction (single-wall or double-wall), and required line speed.
Related reading: our station-by-station overview of downstream pipe extrusion equipment, and the HDPE pipe extrusion line downstream guide for material-specific detail.
To specify a downstream line matched to your corrugated pipe range, contact the SICA India team.
